Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Place of Origin : China

Brand Name : Launch

Certification : CE

Model Number : 55

MOQ : 1pcs

Packaging Details : Standard export packag

Delivery Time : Within 1-2 working day upon receipt payment

Payment Terms : T/T, MoneyGram, Paypal

Supply Ability : 1000PCS/Month

Contact Now

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Quick Detail:

  1. Input power:250W
  2. Ultrasonic cleaner power: 100W
  3. Simulated RPM range:10~9990rpm;
  4. step: 10rpm;
  5. Time range: 1~9999s;
  6. Power supply:AC220V±10%, 50/60Hz AC110V±10%, 50/60Hz

Launch CNC602A Features & Functions

1. Ultrasonic Cleaning: Perform simultaneous cleaning on several injectors and remove the carbon deposits on the injectors completely.

2. Uniformity/Sprayability Test: Test the uniformity each injector, and monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

3. Leakage Test: Test the sealing and dribbling conditions of injectors under system pressure.

4.Injecting Flow Fest: Check the injecting amount of 15 seconds constant injection.

5. Auto. Test: Test injectors by simulating different working conditions.

6. On-vehicle Cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning injectors on vehicle.

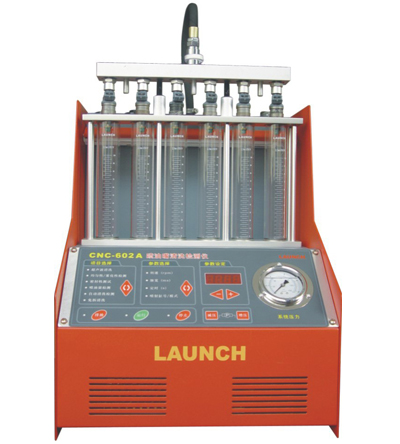

Launch CNC602A Injector Cleaner and Tester

Launch CNC 602A Auto Fuel Injector Tester and Cleaner(launch cnc 602a,cnc-602a) is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also clean the injectors and fuel supply system on vehicle.

Specifications

Power supply

AC220V±10%, 50/60Hz AC110V±10%, 50/60Hz.

Input power

250W;

Ultrasonic cleaner power

100W;

Simulated RPM range

10~9990rpm;

step

10rpm;

Time range

1~9999s;

Pulse width

0.5~25ms; step 0.1 ms;

Fuel tank capacity

4700ml;

Dimensions

385mm×410mm×500mm;

Weight

About 43kg

Spare Parts

No.

PartCode PartName

1

105020217 CNC pulse signal connection cable 1,T=0.5

2

105020218 CNC pulse signal connection cable 2,T=0.8

3

103260037 Ultrasonic cleaner assembly 100W

4

106030038 On-vehicle adaptor package(tool kits)

5

107010428 CNC-602A user manual(En&Ch)

6

103250013 Top-supply connector 1

7

103250015 Swiss thread adaptor for fuel top-supply injector

8

103250016 Coarse thread adaptor for fuel top-supply injector

9

103250018 CNC-601/801 Hexangular stopper

10

104990012 CNC-801 BUICK injector adaptor

11

199010019 Injector testing liquid

12

307030024 Injecter detergent

NOTE: Express company doesn't allow take liquids on plane, and we don't offer the injection liquid. but you can buy it in your local market which is very cheaper.

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate

Launch CNC-602A Fuel Injector Cleaner Machine Car Tester with CE Certificate
